This asset is part of the KhronosGroup/glTF-Sample-Models asset repository.

Description sourceAsset source

SheenChair

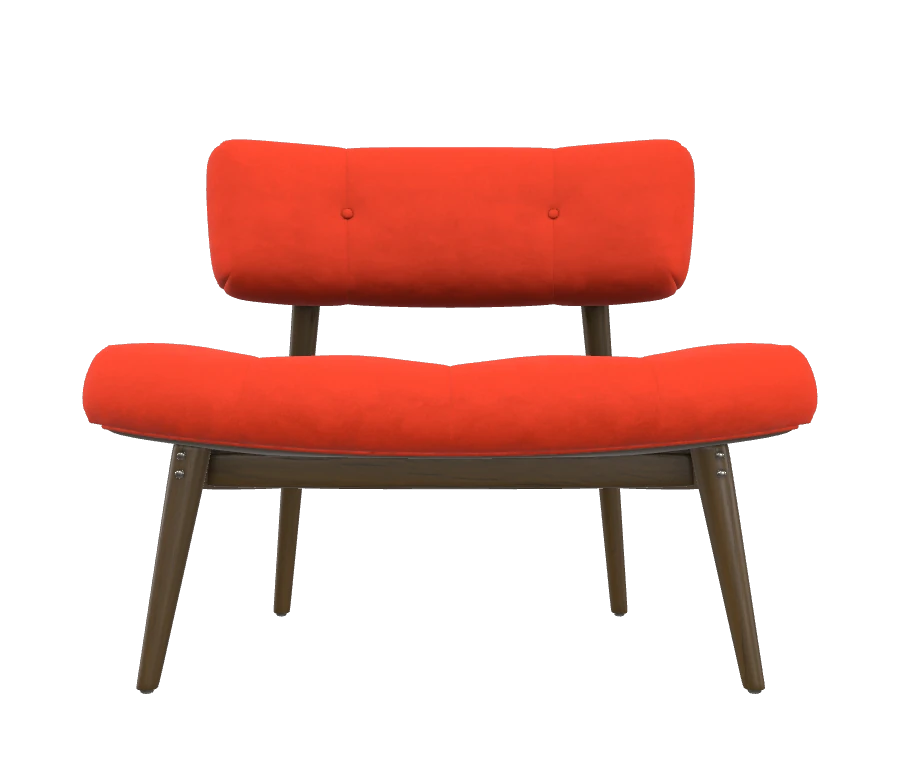

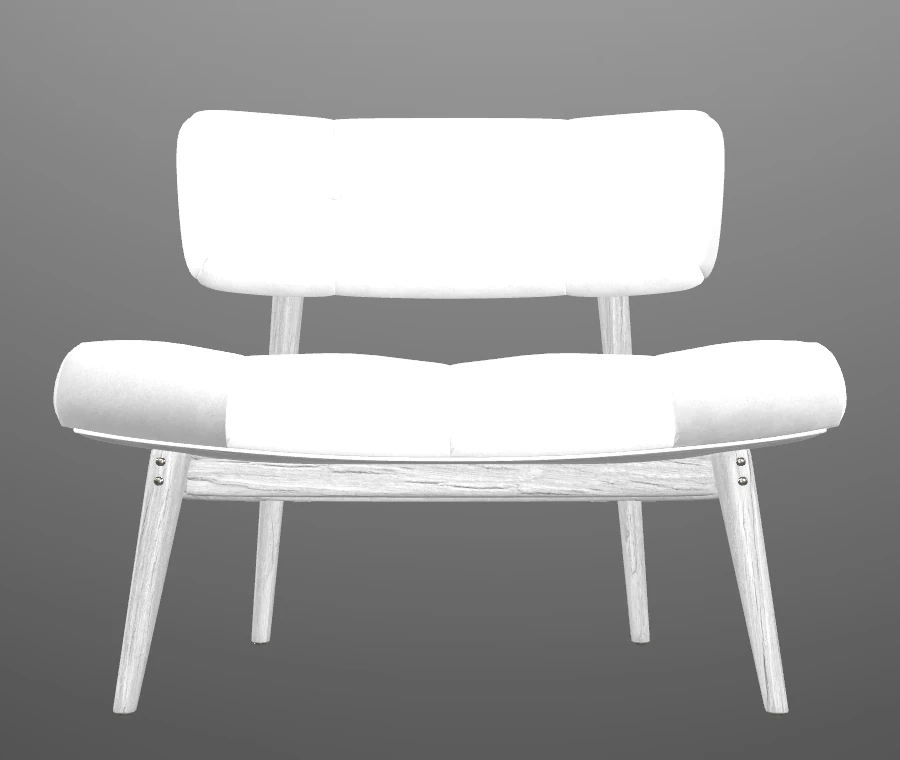

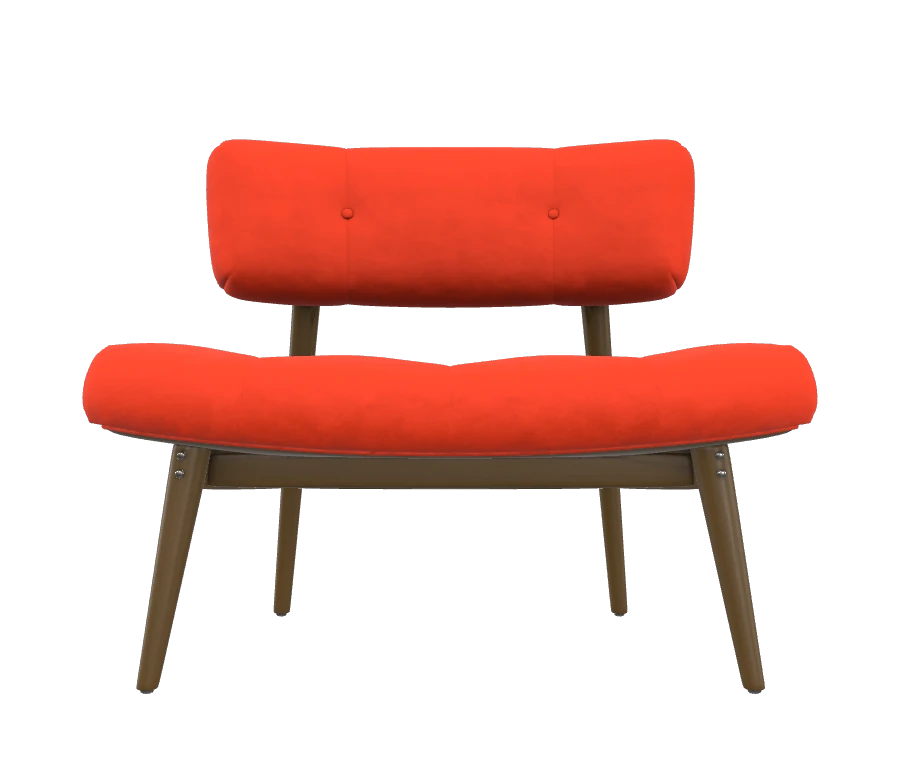

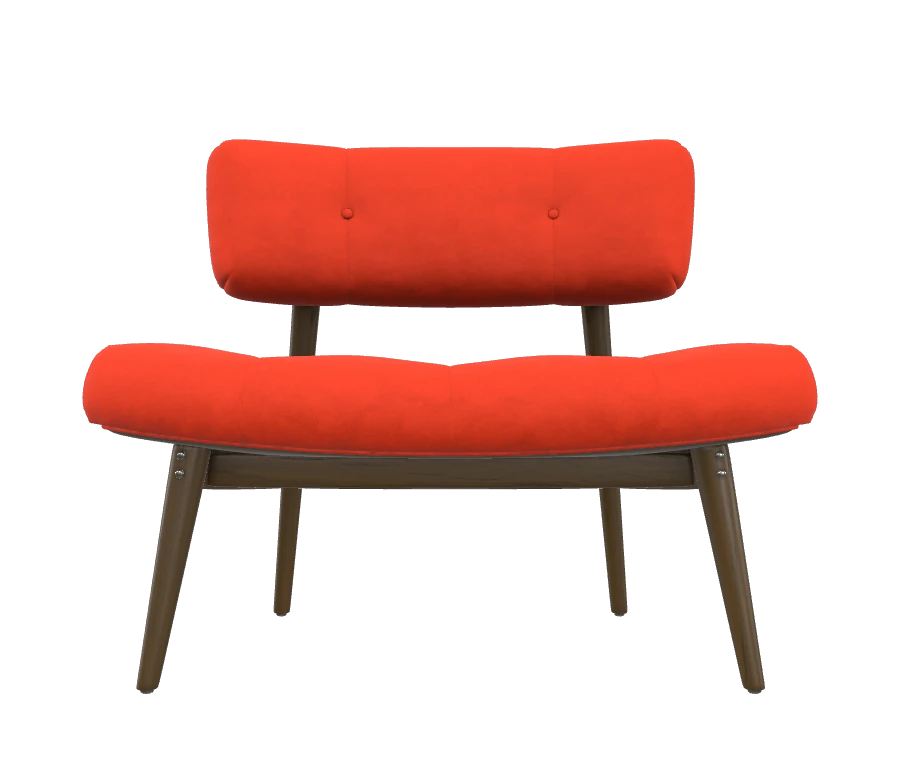

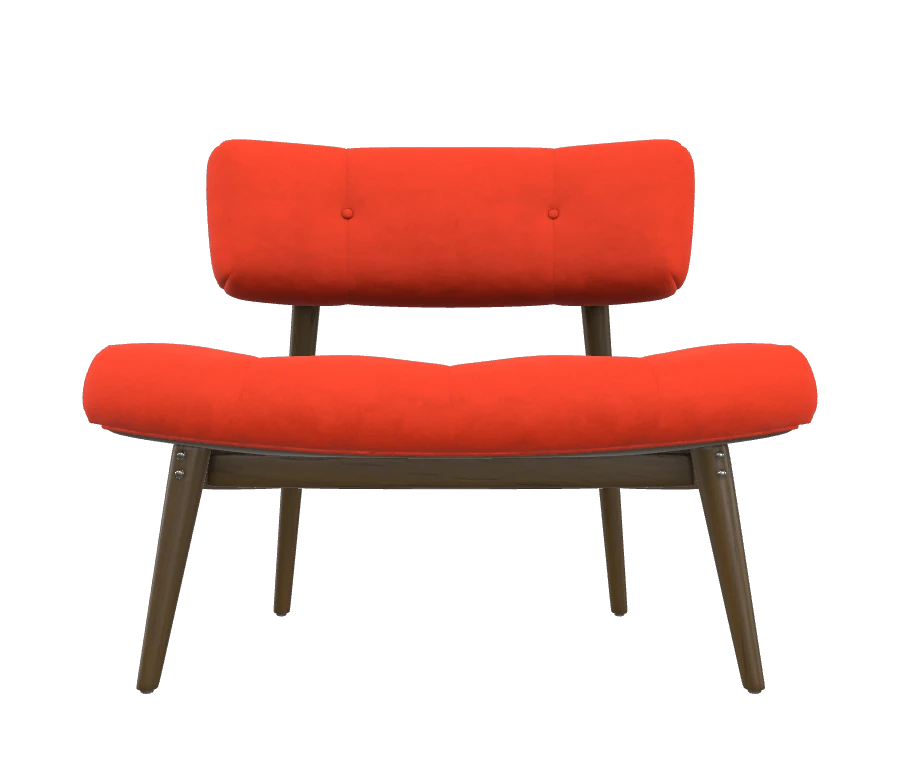

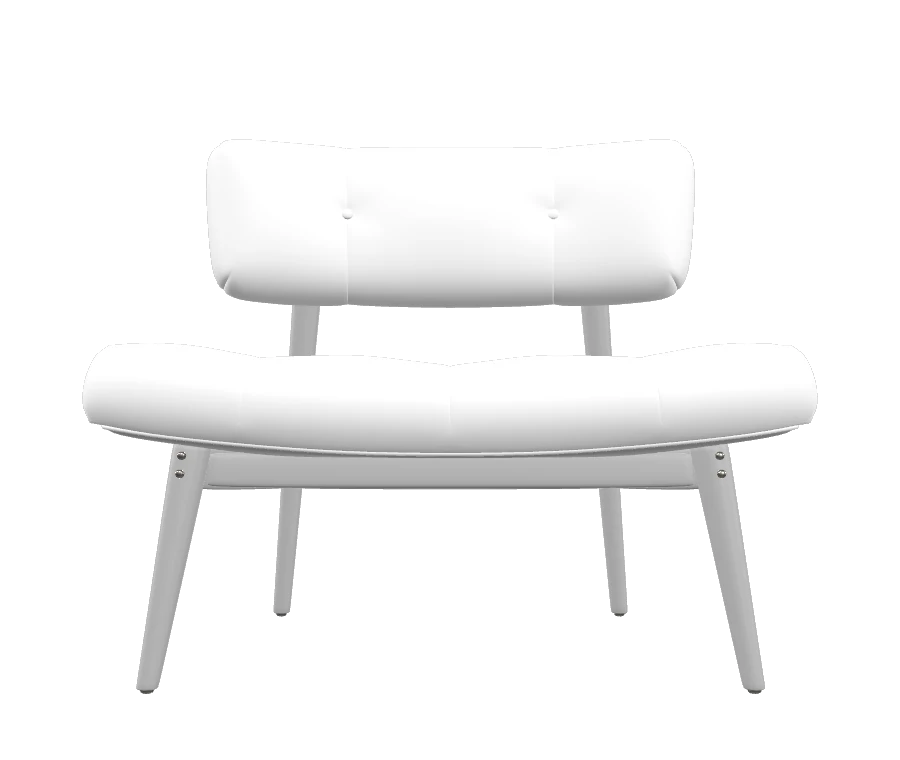

Screenshot

screenshot

Babylon.JS screenshot (above), using the Studio lighting environment.

Description

This model is a wood-framed chair with a fabric seat, tufted with fabric buttons and metal hardware. It uses three extensions: KHR_materials_sheen for velvet fabrics, KHR_texture_transform to tile the textures for fabric and wood, and KHR_materials_variants to create two versions of the chair: "Mango Velvet", and "Peacock Velvet".

The model is made of four parts using subdivision surface modeling, with four materials for fabric, wood, metal, and the label. The ambient occlusion texture is shared by all materials and uses a 2nd UV with all UVs arranged between 0 and 1. All the other textures use the 1st UV which is not so constrained; it has overlaps and the UVs extend outside the 0-1 UV space.

The textures were created uniquely, edited from public domain imagery (https://www.publicdomainpictures.net/), or edited from personal photos. This model does not represent a real product, however the fabrics were modeled to match real fabrics, represented here on the Wayfair website. The use of real-world reference is meant to help glTF developers with calibrating material features and renderer handling, so we can more accurately represent e-commerce products.

KHR_materials_sheen

The fabric materials use the extension KHR_materials_sheen to reproduce velvet fabrics. These screenshots show the real-world photo reference, alongside the intended rendering result, and what may occur if the extension is disabled or not implemented.

screenshot

Above: real-world reference, and Babylon.JS screenshots using the Studio lighting environment, showing the variant "Mango Velvet" with KHR_materials_sheen enabled and disabled.

screenshot

Above: real-world reference, and Babylon.JS screenshots using the Studio lighting environment, showing the variant "Peacock Velvet" with KHR_materials_sheen enabled and disabled.

Material Authoring Choices

To simulate the bending of velvet microfibers from human handling, the red and green color channels of the normal map have been biased in different directions. The normal map has been reduced in strength using the Scale parameter; if this is disabled the fabric may look too rough and bumpy.

The Peacock Velvet material uses 1.0 metalness. While not being physically accurate, metalness colorizes reflections similarly to real-world velvet fabric, creating more contrast to match the real-world reference. Future extensions may add specular color to metallic-roughness materials for dielectric surfaces, negating the need to force metalness in this case.

Authoring Software

The model was created in Autodesk 3ds Max 2020 and exported using the Max2Babylon exporter. To add KHR_materials_sheen and KHR_materials_variants the glTF file was edited manually.

License Information

Copyright 2020 Wayfair LLC, CC-BY 4.0 https://creativecommons.org/licenses/by/4.0/, model and textures created by Eric Chadwick.
