Information and Downloads
| Generator | 3ds Max 2024.1, Satoshi Hayashi glTF exporter 1.43, Visual Studio Code 1.83 with glTF Tools 2.4. |
|---|---|
| Copyright | CC0 public domain, asset created by Eric Chadwick |
| Source | KhronosGroup/glTF-Sample-Assets |
| File size | 1.13 MB |
Has special data

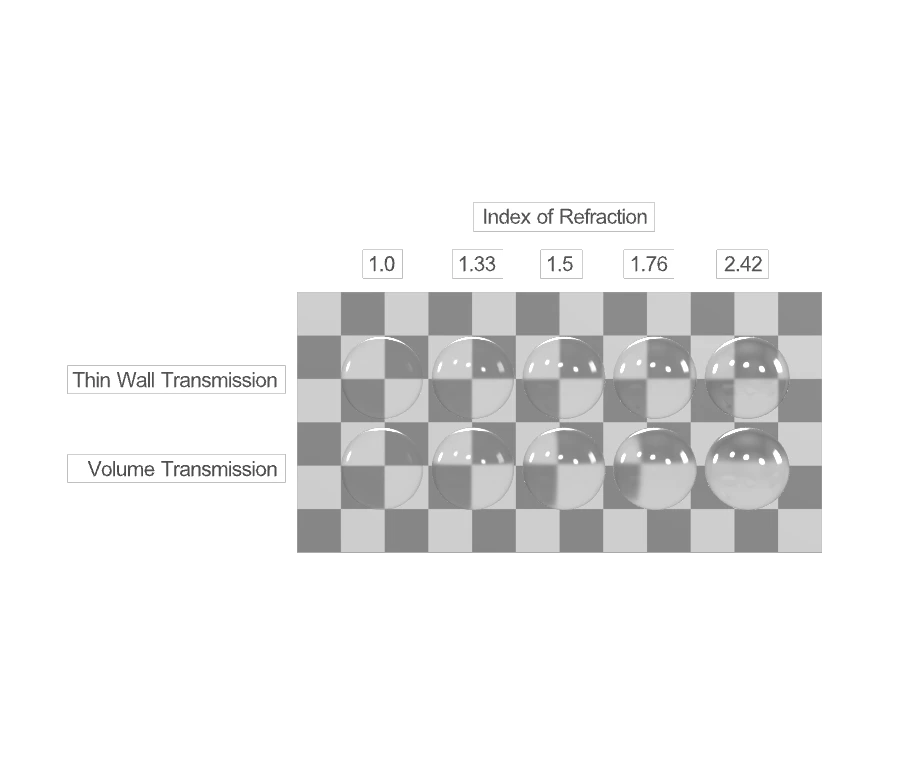

Source glTF Source asset from
KhronosGroup/glTF-Sample-Assets

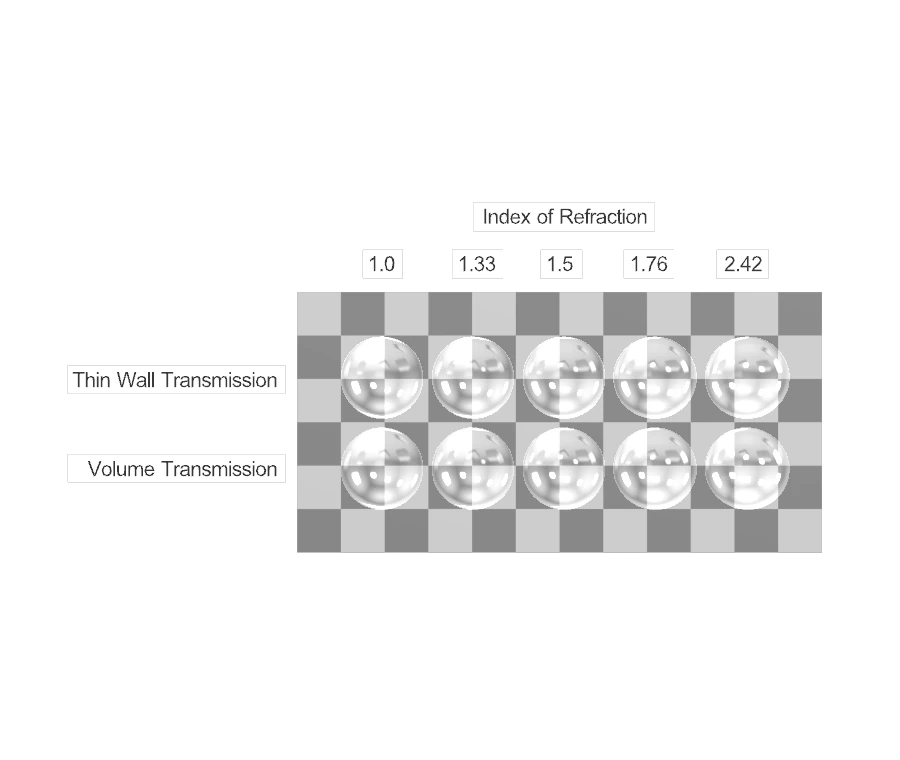

three r185 Converted with upstream three.js 0.185.0
Needle Converted with Needle Engine 5.1.2 USDZExporter
Blender 5.1 Converted with Blender 5.1.2
Adobe glTF Converted with OpenUSD 26.05 and Adobe glTF file-format plugin 2026.03

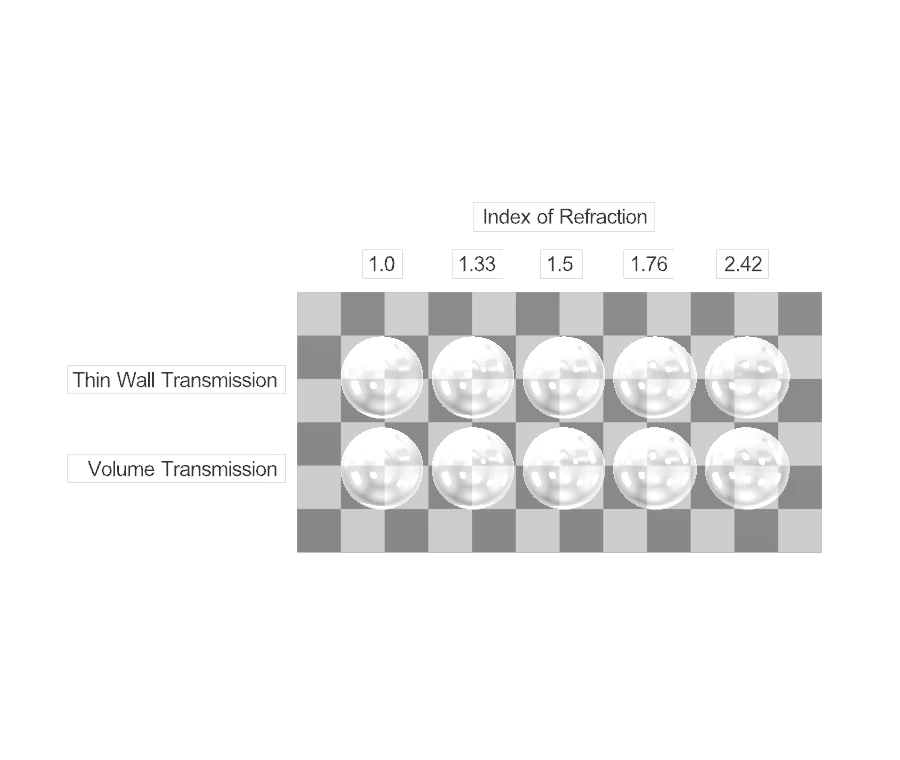

GUC Converted with GUC 0.5
Description
TransmissionThinwallTestGrid
Tags
Extensions Used
- KHR_materials_transmission
- KHR_materials_volume
- KHR_materials_ior
Summary
Grid of spheres over a checkered backdrop to test Thinfilm and IOR rendering.
Operations
- Display in SampleViewer
- Download GLB
- Model Directory
Screenshot

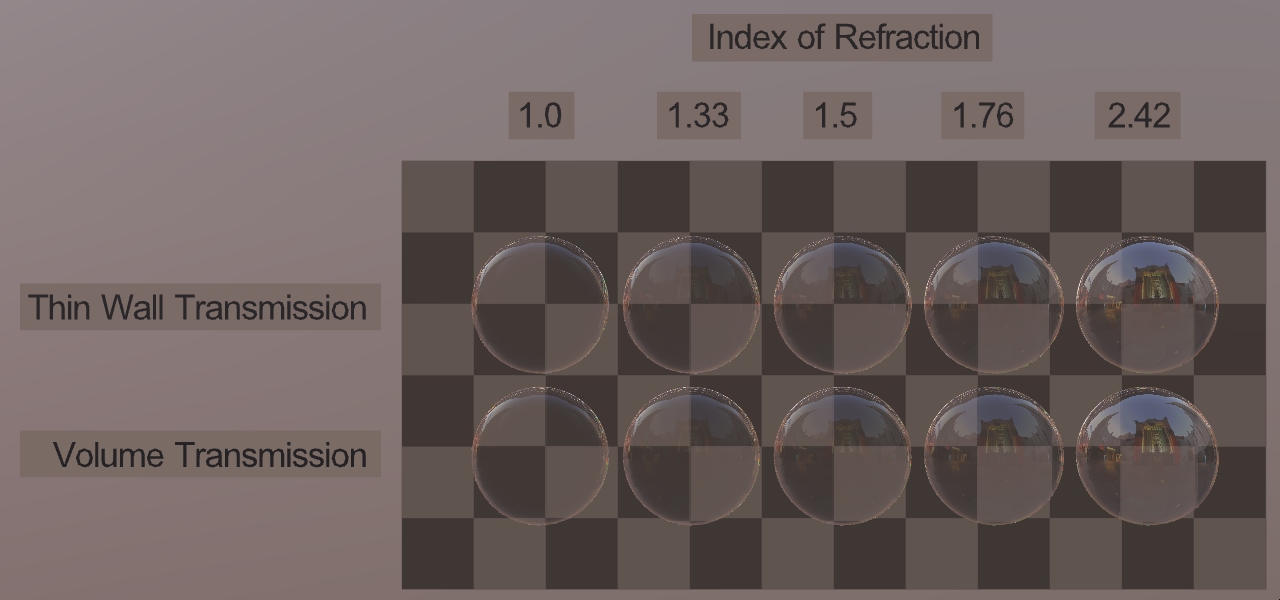

Screenshot from glTF Sample Viewer.
Description
This asset tests the differences in index of refraction between thin-wall and volumetric transmission, using extensions KHR_materials_ior, KHR_materials_transmission, and KHR_materials_volume. The top row of spheres omits the volume extension to cause thin-wall behavior.
The spheres in the bottom row are 2m in diameter with a volume thicknessFactor of 1m, to approximate an average thickness through each volume.
Legal
© 2023, Public. CC0 1.0 Universal
- Eric Chadwick for Everything
