Information and Downloads
| Generator | 3ds Max 2024.1, Satoshi Hayashi glTF exporter 1.41, Visual Studio Code 1.83 with glTF Tools 2.4. |
|---|---|
| Copyright | CC0 public domain, asset created by Eric Chadwick |
| Source | KhronosGroup/glTF-Sample-Assets |
| File size | 1.76 MB |
Source glTF Source asset from
KhronosGroup/glTF-Sample-Assets
three r185 Converted with upstream three.js 0.185.0

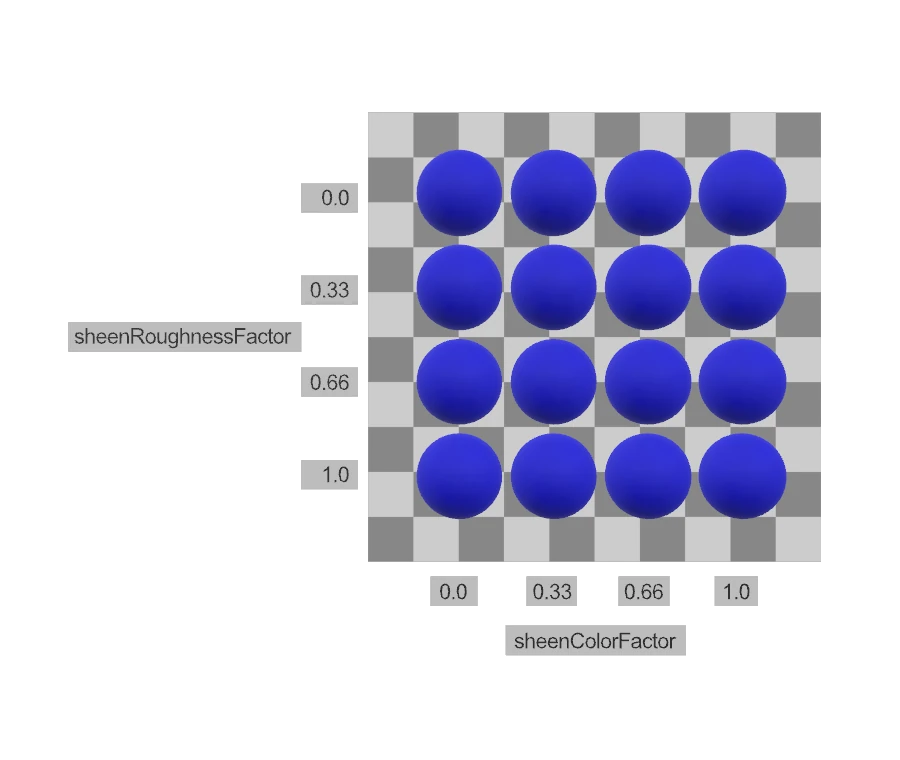

Needle Converted with Needle Engine 5.1.2 USDZExporter
Blender 5.1 Converted with Blender 5.1.2
Adobe glTF Converted with OpenUSD 26.05 and Adobe glTF file-format plugin 2026.03
GUC Converted with GUC 0.5
Description
SheenTestGrid
Tags
Extensions
Required
- KHR_materials_sheen
Used
- KHR_materials_sheen
Summary

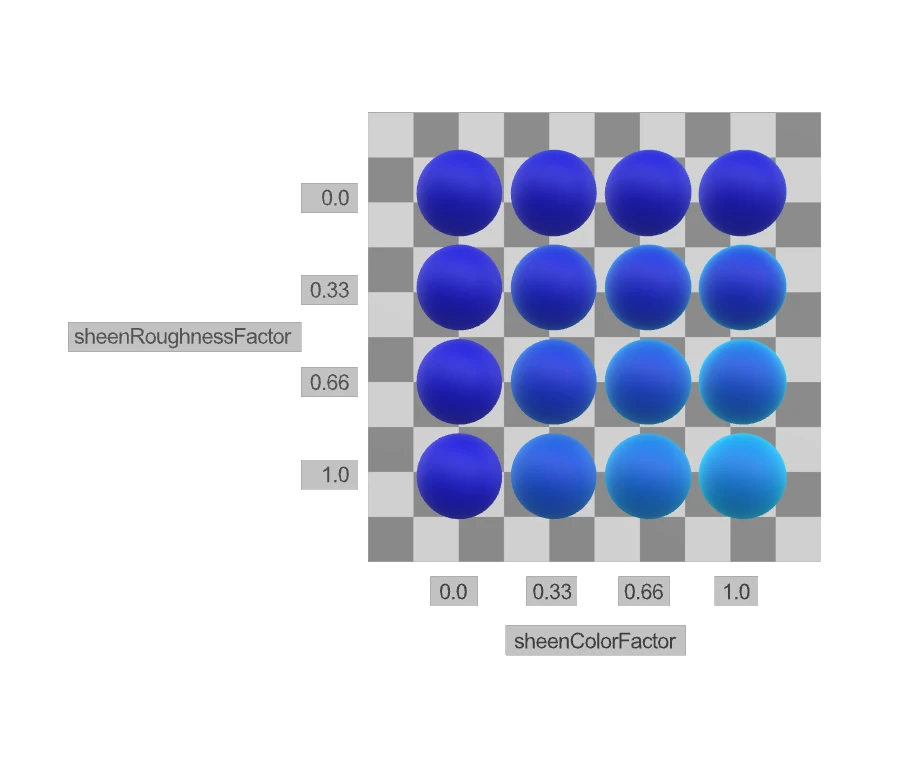

Grid of spheres over a checkered backdrop to test Sheen rendering.
Operations
- Display in SampleViewer
- Download GLB
- Model Directory
Screenshot

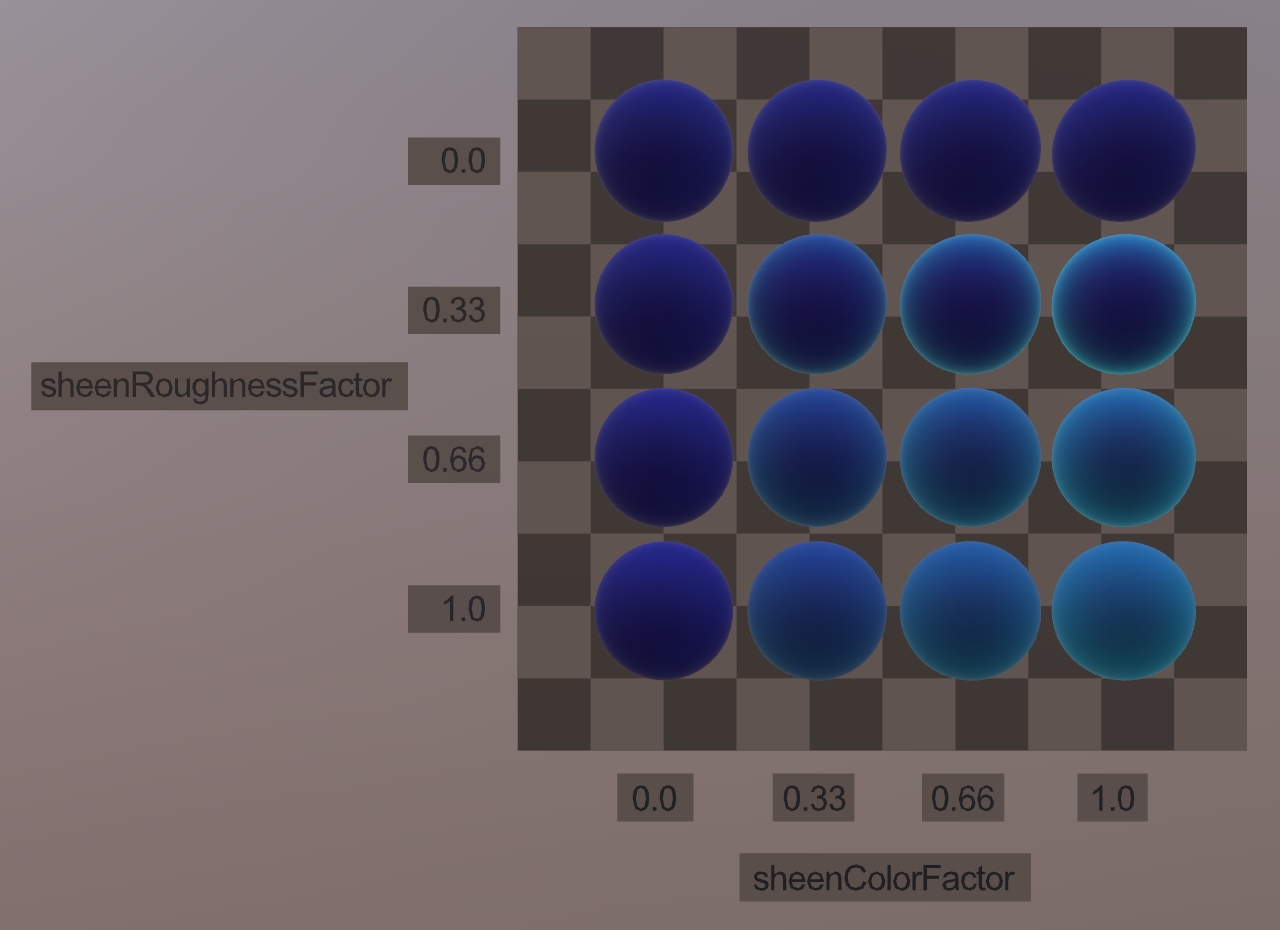

Screenshot from glTF Sample Viewer using the Environment "Footprint Court".
Description
This model tests sheenColorFactor versus sheenRoughnessFactor using the extension KHR_materials_sheen.
The baseColorFactor for all spheres is 0.5 blue, and the sheenColorFactor varies from 0 black to 0,1,1 cyan.
The sheen extension has been explicitly added to each of the sixteen materials, even when the sheenColorFactor is set to black and therefore the extension would usually be omitted.

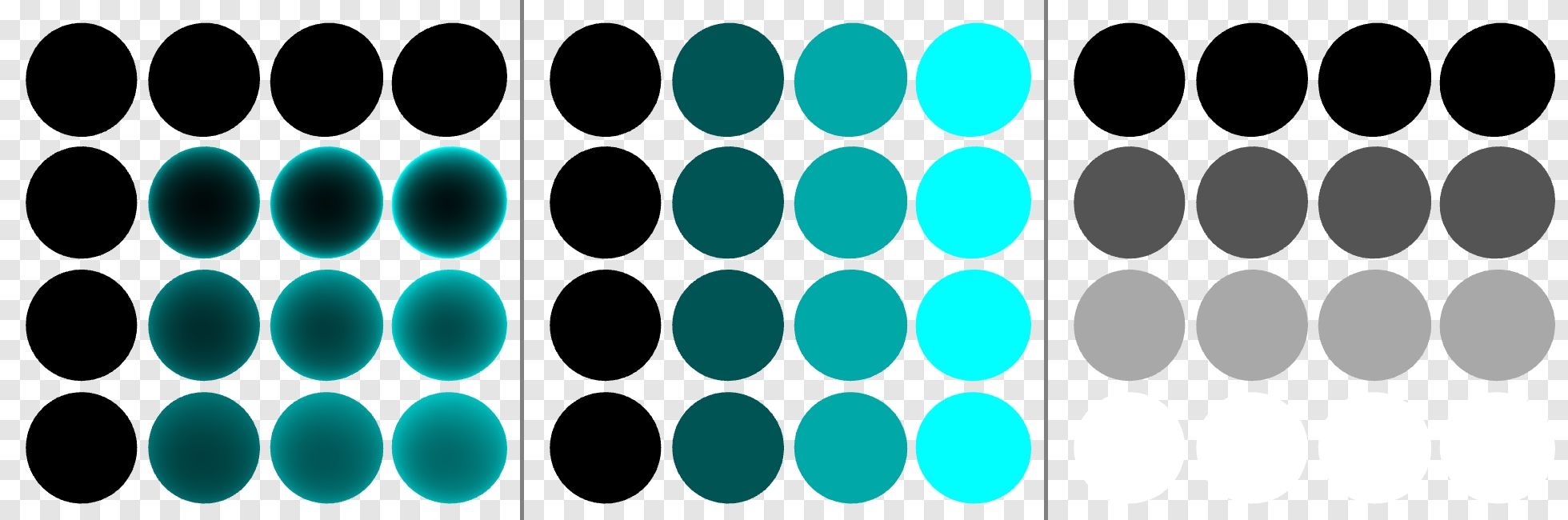

Screenshots from glTF Sample Viewer using the Environment "Studio Neutral" and showing debug views Sheen, Sheen Color, and Sheen Roughness.

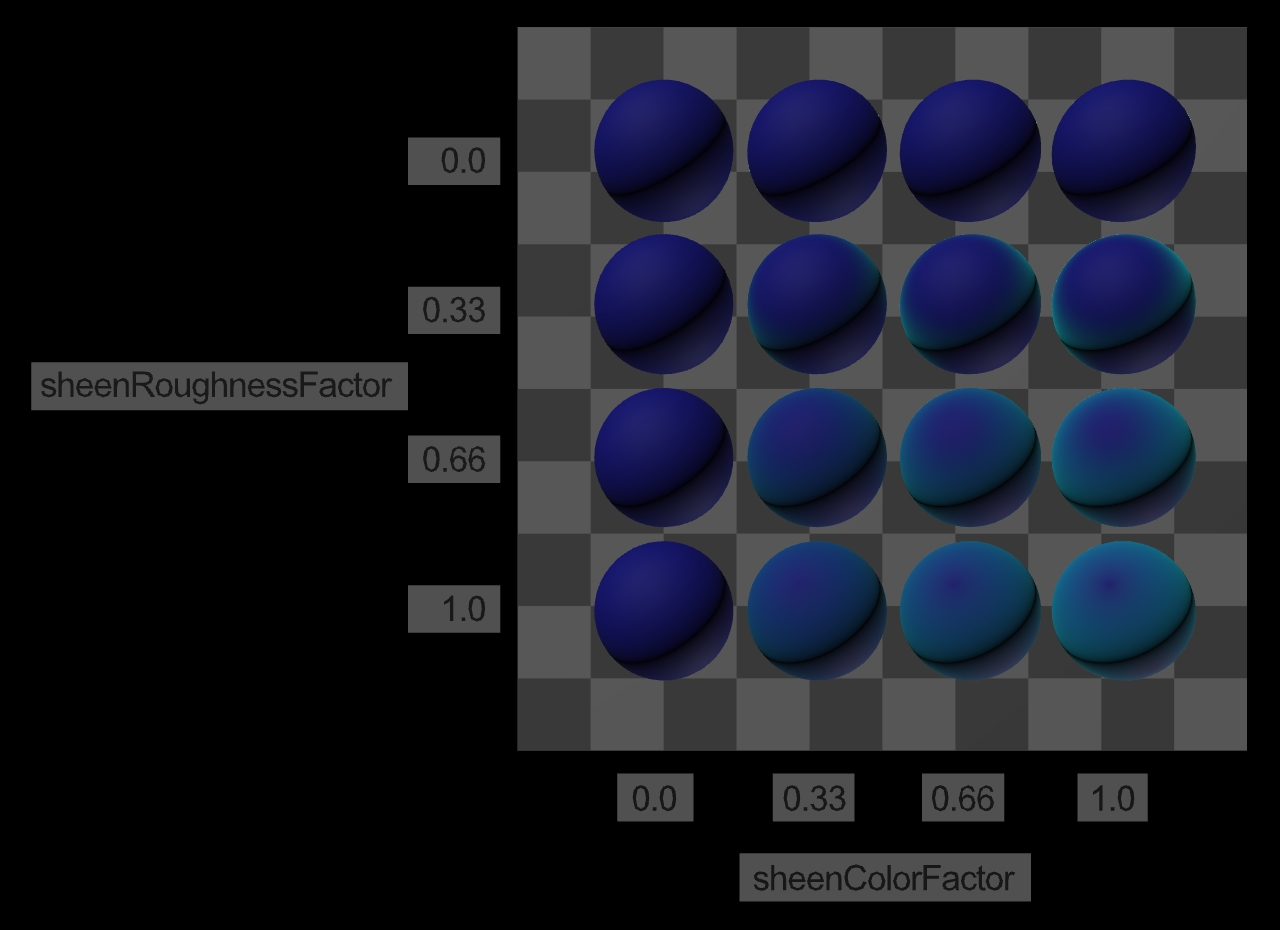

Screenshot from glTF Sample Viewer with the Punctual Lighting option, which uses two directional lights from opposing angles.
Legal
© 2023, Public. CC0 1.0 Universal
- Eric Chadwick for Everything
